940 MODEL SPIRAL MODULAR BELT 25.4
Free Shipping!!

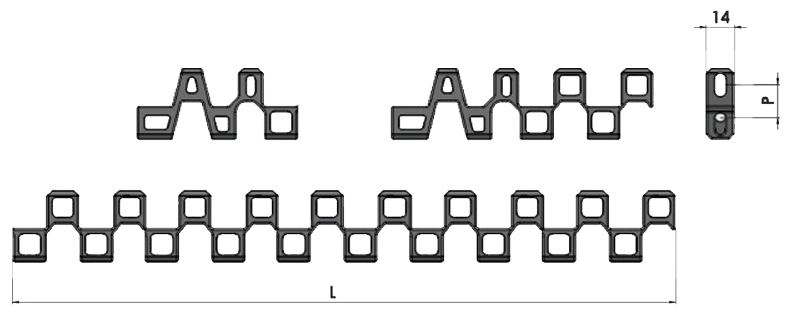

| Pitch | 25.4mm |
| Thickness | 14mm |
| Open Surface Ratio (%) | Open Surface (%50) |
| The width of the module | Right 80,130 mm/ Middle 130,390mm / Left 80,130mm |
| Widthness Increasement Ratio | 33-34 mm |
| Color | White/Blue/Gray (Optional) |
| Cleanability | Medium (FDA Approved) |
| Pin Diameter | 4,6 mm |
| Major Radius | |

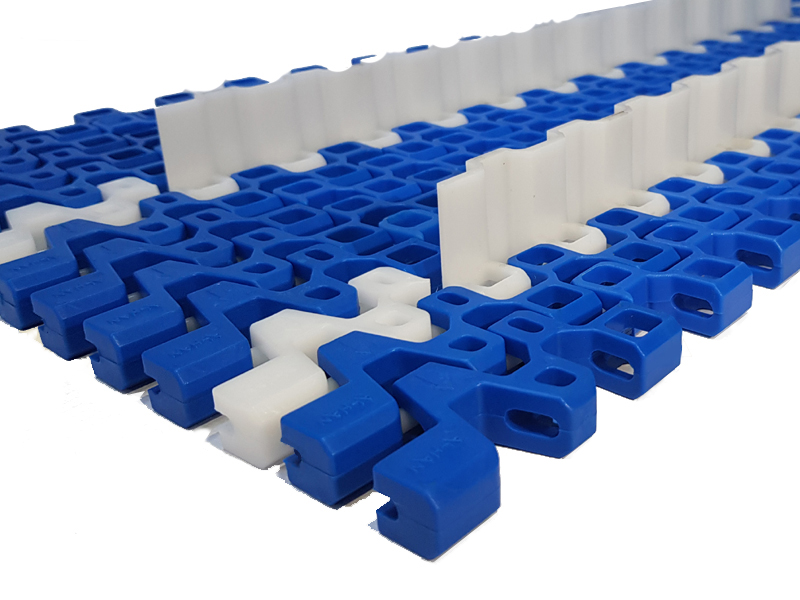

| Cleat | Available (Height: 25 mm) |
| Side Indent Application | Available (Special side indent ratios) |
 |

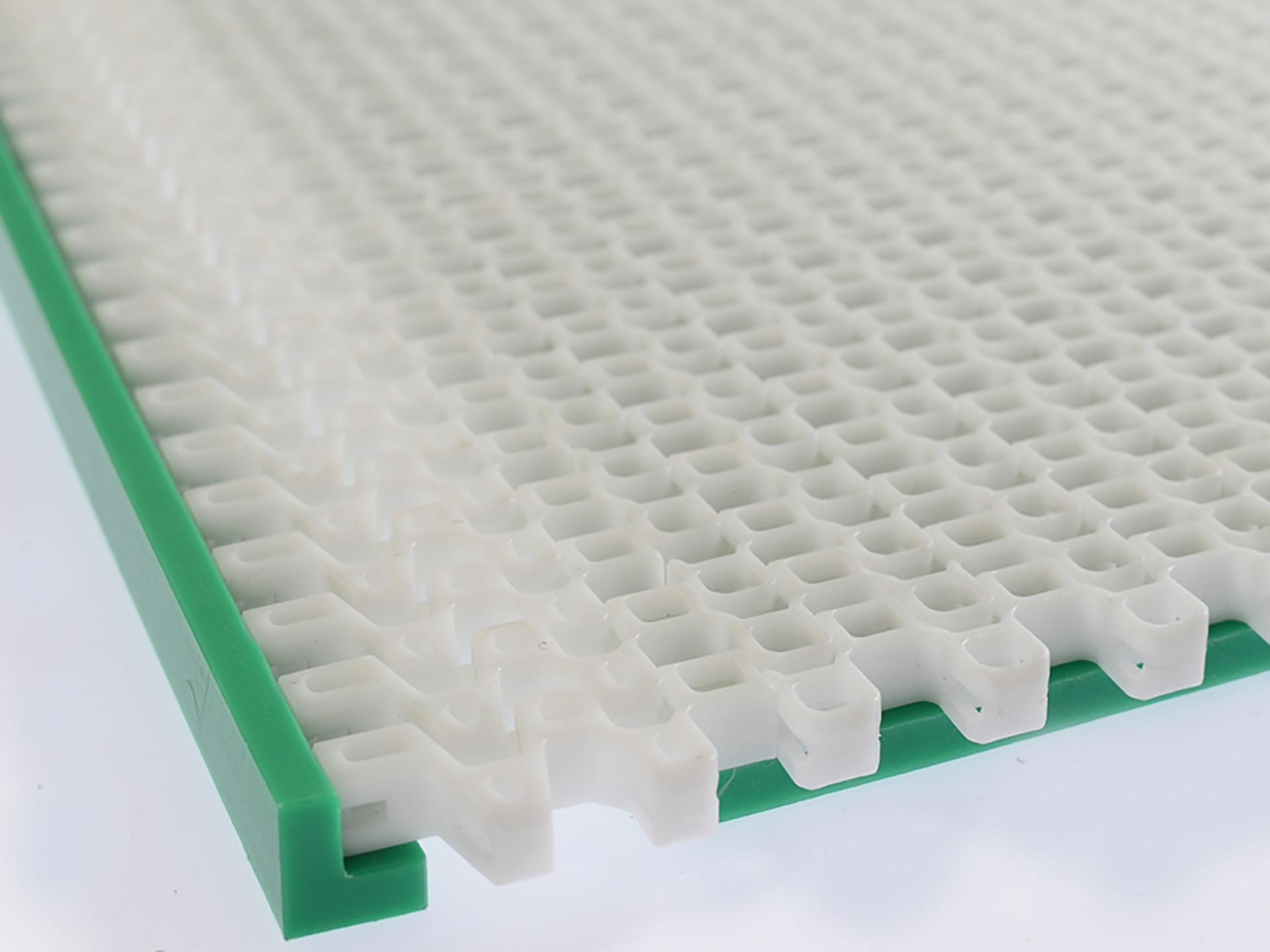

Related Products

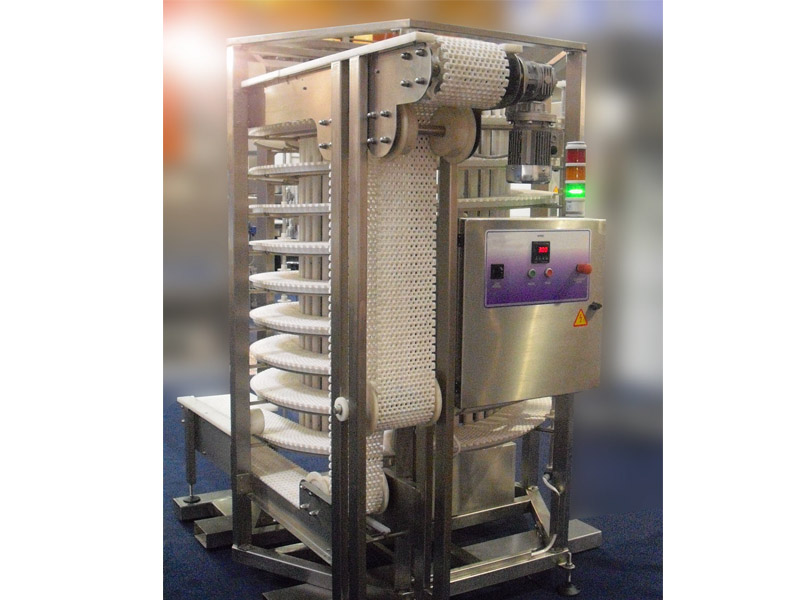

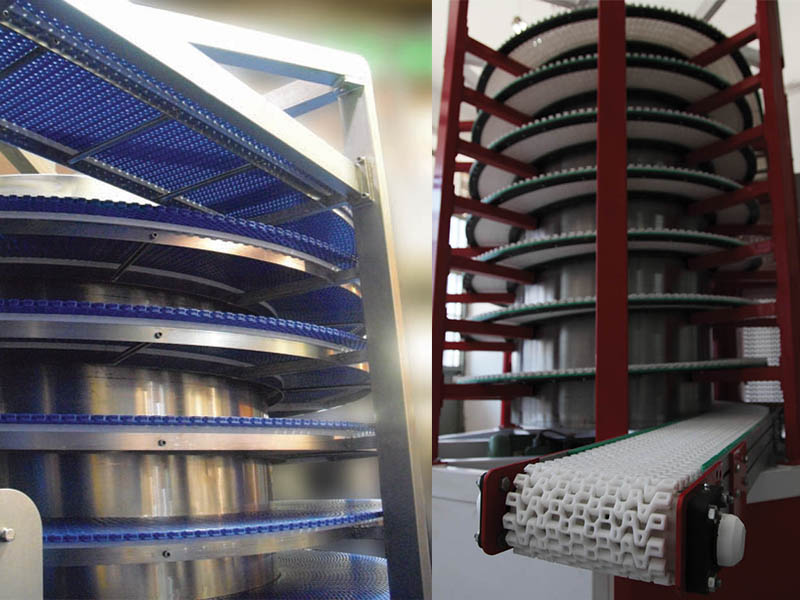

The open-surface area of 940 model Alhan spiral belt makes this belt more popular than the other belt types such as wire, PVC, rubber and so on. This is not the only upside of this model. The turning angle of this belt is also very low due to it’s low pitch ration.

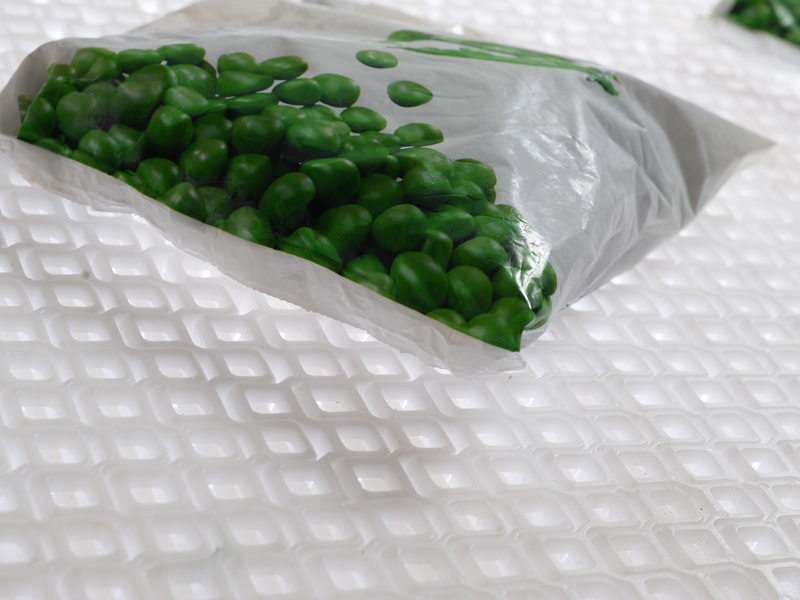

As a result of the selection of Polyacetal (POM) as the raw material, the heat resistance of the belt is quite high. This makes the belt more common to use for the shocking and freezing lines. Because, the 55% of open-surface ratio can easily provide an air circulation between beneath the belt and up top of the belt. Besides, it is easy-to-repair and energy saver for the long lines.
Preferred sectors;
- Food sector
- Meat sector
- Pharmacy
- Beverage sector
- Packaging sector
- Automative sector
- Marine products sector
- Canned goods
- Refreshment sector
| Polypropylene (PP) | +1 | +110 |
| Polyacetal (POM) | -46 | +93 |
| Polyethyene (PE) | -60 | +65 |
|
|
PP |
POM |
|
|---|---|---|---|
|
Colour (2*) |
grey |
white |
|
|
Strength max |
Straight |
1700 |
2500 |
|
Curve |
150 |
210 |
|
|
Temperature (°C) |
+1 +105 |
-46 +93 |
|
|
Open Surface |
50% |
50 % |
|
|
Pitch (mm) P |
25,4 |
25,4 |
|
|
Weight (Kg / m2) |
5,2 |
7,5 |
|
|
Distances between the |
54,6 mm |
54,6 mm |
|
|
Stock Code |
940 B01 K00 |
940 B02 K00 |
|
 |
br |
m2 |
m2 |

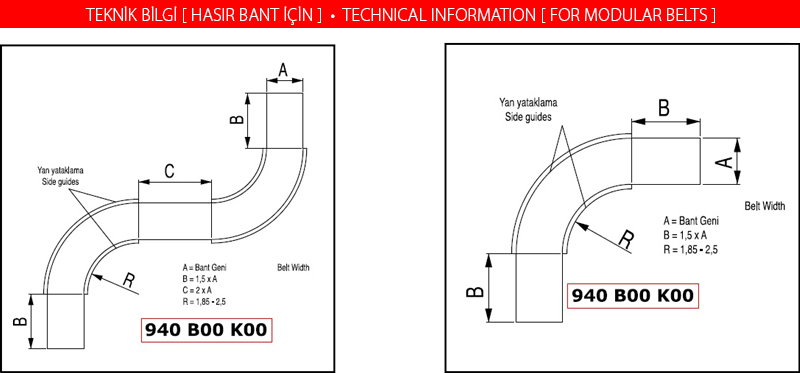

| Stock Code | Belt Width L mm |
Return Rate | Return the Internal Radius Ratio |
Return the External Radius Ratio |
|---|---|---|---|---|
| 940 BO1 K01 | 173 | 1,85 | 320 | 493 |
| 940 BO1 K.. | 207 | 1,85 | 383 | 590 |
| 940 BO1 K.. | 239 | 1,90 | 454 | 693 |
| 940 BO1 K.. | 273 | 1,90 | 519 | 792 |
| 940 BO1 K.. | 306 | 1,90 | 581 | 887 |
| 940 BO1 K.. | 340 | 1,90 | 635 | 969 |
| 940 BO1 K.. | 371 | 2,00 | 742 | 1113 |
| 940 BO1 K.. | 405 | 2,00 | 810 | 1215 |
| 940 BO1 K.. | 437 | 2,00 | 874 | 1311 |
| 940 BO1 K.. | 471 | 2,00 | 942 | 1413 |
| 940 BO1 K.. | 504 | 2,05 | 1033 | 1537 |
| 940 BO1 K.. | 538 | 2,05 | 1103 | 1641 |
| 940 BO1 K.. | 570 | 2,05 | 1169 | 1739 |
| 940 BO1 K.. | 603 | 2,10 | 1266 | 1869 |
| 940 BO1 K.. | 636 | 2,10 | 1336 | 1972 |
| 940 BO1 K.. | 669 | 2,10 | 1405 | 2074 |
| 940 BO1 K.. | 702 | 2,10 | 1474 | 2176 |
| 940 BO1 K.. | 735 | 2,10 | 1544 | 2279 |
| 940 BO1 K.. | 769 | 2,15 | 1653 | 2422 |
| 940 BO1 K.. | 802 | 2,15 | 1724 | 2526 |
| 940 BO1 K.. | 862 | 2,15 | 1853 | 2715 |
| 940 BO1 K.. | 900 | 2,20 | 1980 | 2880 |
| 940 BO1 K.. | 933 | 2,20 | 2053 | 2986 |
| 940 BO1 K.. | 1000 | 2,20 | 2200 | 3200 |
| 940 BO1 K.. | 1032 | 2,30 | 2374 | 3406 |
| 940 BO1 K.. | 1065 | 2,30 | 2450 | 3515 |
| 940 BO1 K.. | 1098 | 2,30 | 2525 | 3623 |
| 940 BO1 K.. | 1131 | 2,30 | 2601 | 3732 |
