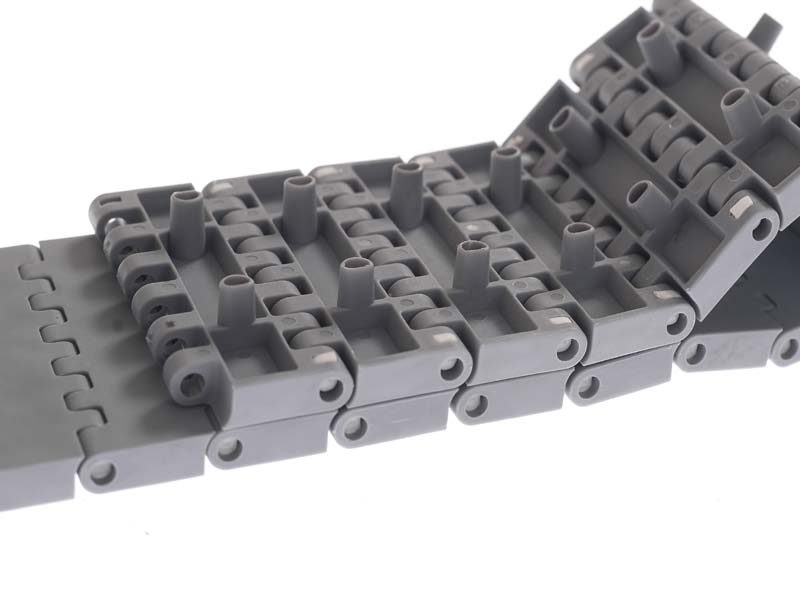

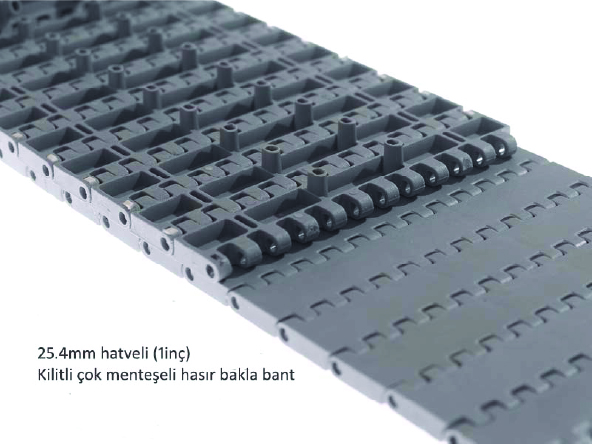

ALHAN® belts with smooth linear surface have a locking system that can be easily changed in case of damage to the (modular) mesh tape in the dimensions you want. It is compatible with various industries – 46 +110 (It can be applied with different materials for places that require special working conditions.) When you prefer long conveyor lines, our ALHAN 25,4 mm pitch (1 inch) mesh belts are preferred in the following situations. It does not require much supervision due to its high strength properties. ALHAN (modular) mold-to-width Belt for healthy transportation is long-lasting, requires less maintenance and saves energy. ALHAN (modular) Knitted belts have less initial investment and are an innovative product.

Polyacetal (POM) Plastic (modular) mold-to-width belts are the solution for frozen products – they can work at 46 +70 degrees.

Polypropylene (PP) Plastic (modular) mold-to-width belts are more resistant to acidic basic and salty environments at +1 + 110 degrees.

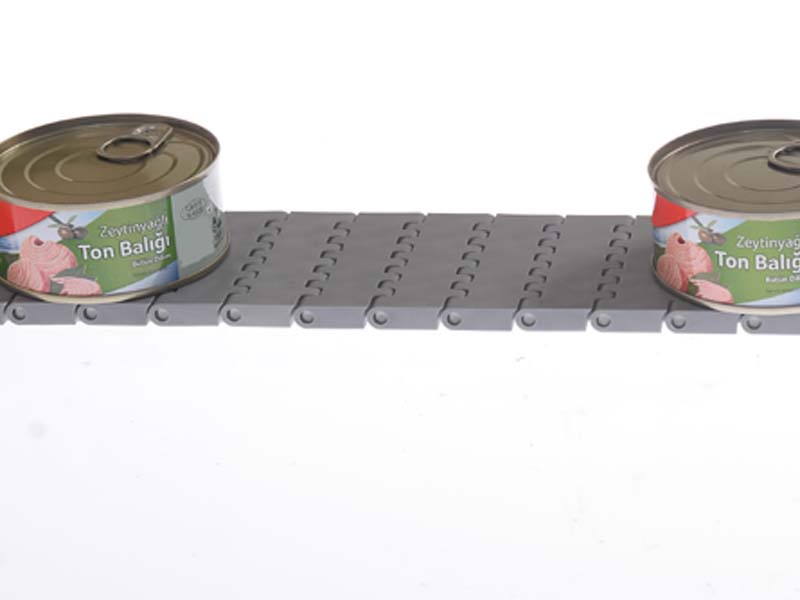

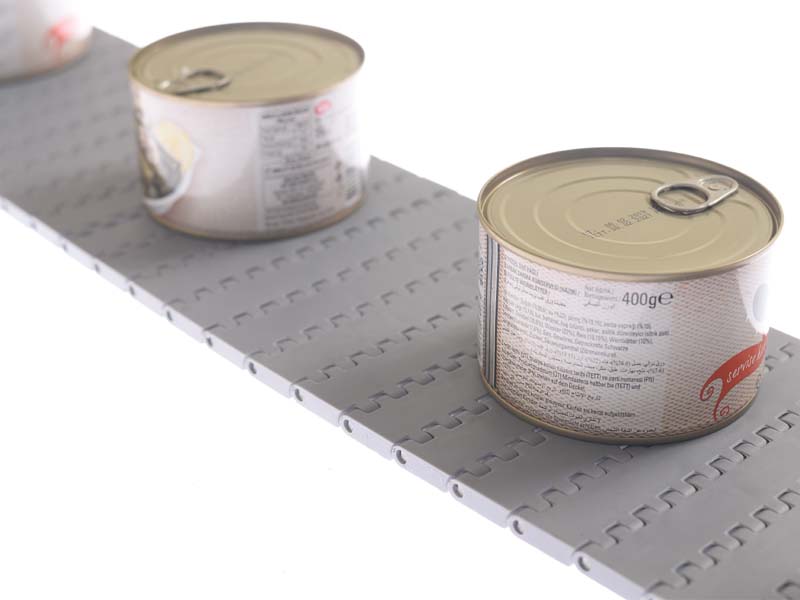

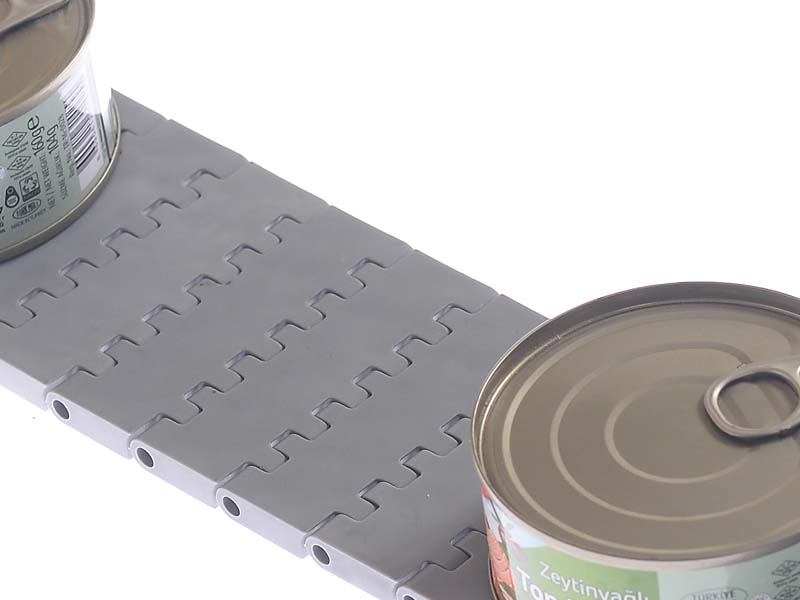

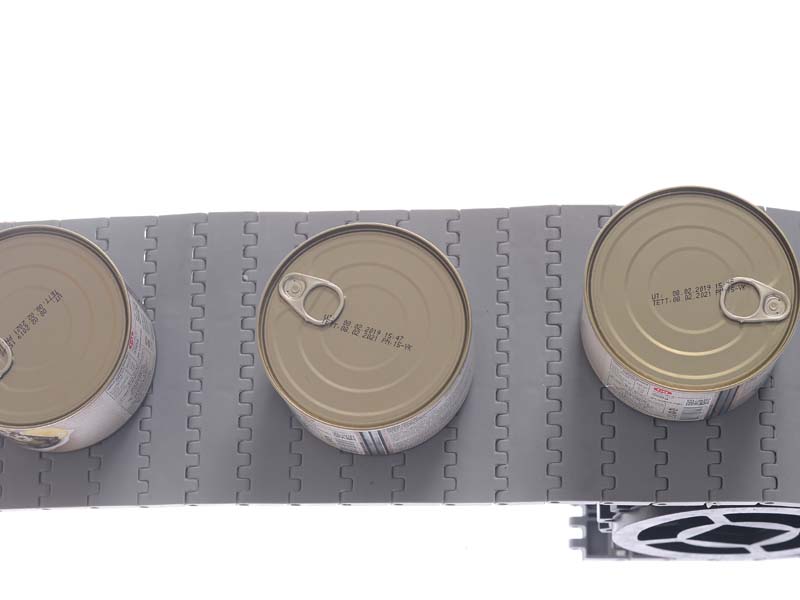

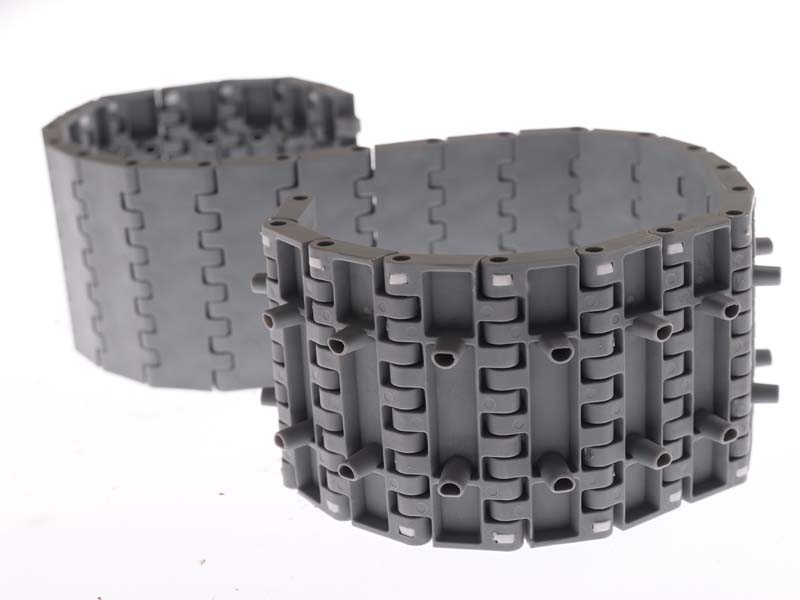

Model 822 (modular) open grid belt surface is flat and smooth, and is suitable for the food industry with its clean structure. It has FDA food grade document approval.

The industrial areas of the usage of 25,4mm mold-to-width modular belt;

• Food Industry
• Automative Industry
• Meat Industry
• Pharmaceutical Industry
• Becerage Industry
• Fruit and Vegetable Sector
• Canned Food Industry
• Sea Products
• Confectionary Industry
• PacKaging Industry
• Corrugated Cardboard Sector
• Bakery Products

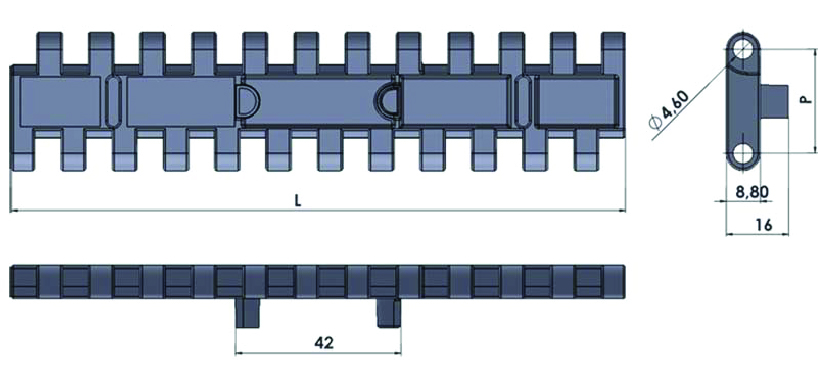

Stock Code	P	Color	L	Material	PIN	Chain Strength (N/m)	Kg / m2
822 GPP 152	25,4	Gray (G)	152,4	Polypropylene	PP	21160	0,650	m
822 GPO 152	25,4	Gray (G)	152,4	Polyacetal	PA	20400	1,125	m
822 GPP 082	25,4	Gray (G)	152,4	Polypropylene	PP	35200	0,350	m
822 GPO 082	25,4	Gray (G)	152,4	Polyacetal	PA	34100	0,700	m
